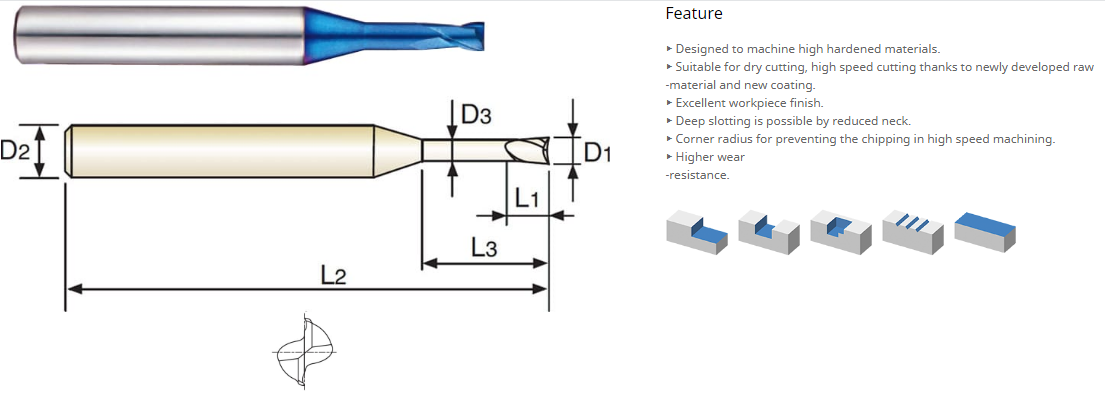

Mũi phay 2 me cổ dài G8A45

Mô tả

EDP No.	R	D1	D2	L1	L3	L2	Mill Dia. Tolerance	Shank Dia.Tolerance	No. of Flute	Taper Angle
G8A45002		0.2	4	0.3	0.5	45	0~-0.012	h5	2
G8A45003		0.3	4	0.45	1	45	0~-0.012	h5	2
G8A45004		0.4	4	0.6	2	45	0~-0.012	h5	2
G8A45005		0.5	4	0.7	2	45	0~-0.012	h5	2
G8A45006		0.6	4	0.9	2	45	0~-0.012	h5	2
G8A45008		0.8	4	1.2	4	45	0~-0.012	h5	2
G8A45010		1	4	1.5	6	45	0~-0.012	h5	2
G8A45012		1.2	4	1.8	6	45	0~-0.012	h5	2
G8A45015		1.5	4	2.3	6	45	0~-0.012	h5	2
G8A45020		2	4	3	8	45	0~-0.012	h5	2
G8A45040		4	6	6	12	50	0~-0.012	h5	2
G8A45801		4	6	6	16	60	0~-0.012	h5	2
G8A45802		4	6	6	20	60	0~-0.012	h5	2
G8A45803		4	6	6	25	70	0~-0.012	h5	2
G8A45810		1.5	4	2.3	20	55	0~-0.012	h5	2
G8A45814		2	4	3	30	70	0~-0.012	h5	2
G8A45815		0.2	4	0.3	1	45	0~-0.012	h5	2
G8A45816		0.2	4	0.3	1.5	45	0~-0.012	h5	2
G8A45817		0.3	4	0.45	2	45	0~-0.012	h5	2
G8A45818		0.3	4	0.45	3	45	0~-0.012	h5	2
G8A45819		0.6	4	0.9	10	45	0~-0.012	h5	2
G8A45832		3	6	4.5	30	70	0~-0.012	h5	2
G8A45833		3	6	4.5	35	80	0~-0.012	h5	2
G8A45834		4	6	6	30	70	0~-0.012	h5	2
G8A45835		4	6	6	35	80	0~-0.012	h5	2
G8A45836		4	6	6	40	90	0~-0.012	h5	2
G8A45837		4	6	6	45	90	0~-0.012	h5	2
G8A45838		4	6	6	50	100	0~-0.012	h5	2
G8A45842		0.3	4	0.45	4	45	0~-0.012	h5	2
G8A45843		0.4	4	0.6	1	45	0~-0.012	h5	2
G8A45844		0.3	4	0.45	1.5	45	0~-0.012	h5	2
G8A45860		0.6	4	0.9	3	45	0~-0.012	h5	2
G8A45861		0.5	4	0.7	2.5	45	0~-0.012	h5	2
G8A45862		0.8	4	1.2	2	45	0~-0.012	h5	2
G8A45863		0.1	4	0.15	0.3	45	0~-0.012	h5	2
G8A45864		0.1	4	0.15	0.5	45	0~-0.012	h5	2
G8A45908		0.8	4	1.2	6	45	0~-0.012	h5	2
G8A45909		0.8	4	1.2	8	45	0~-0.012	h5	2
G8A45912		1	4	1.5	8	45	0~-0.012	h5	2
G8A45913		1	4	1.5	10	45	0~-0.012	h5	2
G8A45914		1	4	1.5	12	45	0~-0.012	h5	2
G8A45915		1.2	4	1.8	8	45	0~-0.012	h5	2
G8A45916		1.2	4	1.8	10	45	0~-0.012	h5	2
G8A45917		1.2	4	1.8	12	45	0~-0.012	h5	2
G8A45923		1.5	4	2.3	8	45	0~-0.012	h5	2
G8A45924		1.5	4	2.3	10	45	0~-0.012	h5	2
G8A45925		1.5	4	2.3	12	45	0~-0.012	h5	2
G8A45926		1.5	4	2.3	14	50	0~-0.012	h5	2
G8A45927		1.5	4	2.3	16	50	0~-0.012	h5	2
G8A45928		1.5	4	2.3	18	55	0~-0.012	h5	2
G8A45958		2	4	3	6	45	0~-0.012	h5	2
G8A45959		2	4	3	10	45	0~-0.012	h5	2
G8A45960		2	4	3	12	45	0~-0.012	h5	2
G8A45961		2	4	3	14	50	0~-0.012	h5	2
G8A45962		2	4	3	16	50	0~-0.012	h5	2
G8A45963		2	4	3	18	55	0~-0.012	h5	2
G8A45964		2	4	3	20	55	0~-0.012	h5	2
G8A45966		2	4	3	25	60	0~-0.012	h5	2
G8A45975		3	6	4.5	10	45	0~-0.012	h5	2
G8A45976		3	6	4.5	12	45	0~-0.012	h5	2
G8A45977		3	6	4.5	14	50	0~-0.012	h5	2
G8A45978		3	6	4.5	16	55	0~-0.012	h5	2
G8A45979		3	6	4.5	18	55	0~-0.012	h5	2
G8A45980		3	6	4.5	20	60	0~-0.012	h5	2
G8A45981		3	6	4.5	25	65	0~-0.012	h5	2
G8A45983		3	6	4.5	40	90	0~-0.012	h5	2
G8A45984		0.4	4	0.6	3	45	0~-0.012	h5	2
G8A45985		0.4	4	0.6	4	45	0~-0.012	h5	2
G8A45986		0.4	4	0.6	5	45	0~-0.012	h5	2
G8A45988		0.5	4	0.7	4	45	0~-0.012	h5	2
G8A45989		0.5	4	0.7	6	45	0~-0.012	h5	2
G8A45990		0.5	4	0.7	8	45	0~-0.012	h5	2
G8A45991		0.6	4	0.9	4	45	0~-0.012	h5	2
G8A45992		0.6	4	0.9	6	45	0~-0.012	h5	2
G8A45993		0.6	4	0.9	8	45	0~-0.012	h5	2
G8A45994		0.8	4	1.2	10	45	0~-0.012	h5	2
G8A45995		0.8	4	1.2	12	45	0~-0.012	h5	2
G8A45996		1	4	1.5	4	45	0~-0.012	h5	2
G8A45997		1	4	1.5	16	50	0~-0.012	h5	2
G8A45998		1	4	1.5	20	55	0~-0.012	h5	2
G8A45999		1.2	4	1.8	16	50	0~-0.012	h5	2

Yêu cầu báo giá

Yêu cầu hỗ trợ báo giá nhanh, khách hàng vui lòng liên hệ Hotline 0902 59 13 12

Rất tiếc ! Sản phẩm này chưa có Video giới thiệu.
