Mũi phay 4 me cắt SEME71

Mô tả

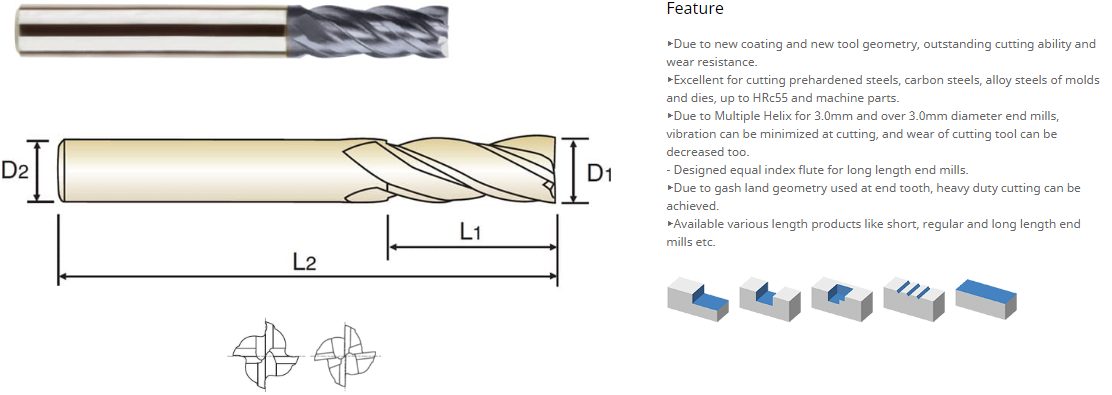

EDP No.	R	D1	D2	L1	L3	L2	Mill Dia. Tolerance	Shank Dia.Tolerance	No. of Flute	Taper Angle
SEME71010		1	6	2.5		50	0~-0.030	h5	4
SEME71010		1	6	3		50	0~-0.030	h5	4
SEME7101001		1	6	1		40	0~-0.030	h5	4
SEME7101001E		1	6	1		40	0~-0.030	h5	4
SEME7101002		1	6	2		40	0~-0.030	h5	4
SEME7101002E		1	6	2		40	0~-0.030	h5	4
SEME7101003		1	6	3		50	0~-0.030	h5	4
SEME7101003E		1	6	3		50	0~-0.030	h5	4
SEME7101004		1	6	4		50	0~-0.030	h5	4
SEME7101004E		1	6	4		50	0~-0.030	h5	4
SEME7101006		1	6	6		50	0~-0.030	h5	4
SEME7101006E		1	6	6		50	0~-0.030	h5	4
SEME71010E		1	6	2.5		50	0~-0.030	h5	4
SEME71012		1.2	6	3		50	0~-0.030	h5	4
SEME71012		1.2	6	4		50	0~-0.030	h5	4
SEME7101202		1.2	6	2		40	0~-0.030	h5	4
SEME7101202E		1.2	6	2		40	0~-0.030	h5	4
SEME7101204		1.2	6	4		50	0~-0.030	h5	4
SEME7101204		1.2	6	6		50	0~-0.030	h5	4
SEME7101204E		1.2	6	4		50	0~-0.030	h5	4
SEME7101206		1.2	6	3		50	0~-0.030	h5	4
SEME7101206		1.2	6	6		50	0~-0.030	h5	4
SEME7101206E		1.2	6	6		50	0~-0.030	h5	4
SEME71012E		1.2	6	3		50	0~-0.030	h5	4
SEME71015		1.5	6	4		50	0~-0.030	h5	4
SEME71015		1.5	6	6		50	0~-0.030	h5	4
SEME71015015		1.5	6	1.5		40	0~-0.030	h5	4
SEME71015015E		1.5	6	1.5		40	0~-0.030	h5	4
SEME7101503		1.5	6	3		40	0~-0.030	h5	4
SEME7101503E		1.5	6	3		40	0~-0.030	h5	4
SEME7101506		1.5	6	6		50	0~-0.030	h5	4
SEME7101506E		1.5	6	6		50	0~-0.030	h5	4
SEME7101508		1.5	6	8		50	0~-0.030	h5	4
SEME7101508E		1.5	6	8		50	0~-0.030	h5	4
SEME7101510		1.5	6	10		50	0~-0.030	h5	4
SEME7101510E		1.5	6	10		50	0~-0.030	h5	4
SEME71015E		1.5	6	4		50	0~-0.030	h5	4
SEME71020		2	6	6		50	0~-0.030	h5	4
SEME71020		2	6	8		50	0~-0.030	h5	4
SEME7102002		2	6	2		40	0~-0.030	h5	4
SEME7102002E		2	6	2		40	0~-0.030	h5	4
SEME7102004		2	6	4		40	0~-0.030	h5	4
SEME7102004E		2	6	4		40	0~-0.030	h5	4
SEME7102008		2	6	8		50	0~-0.030	h5	4
SEME7102008E		2	6	8		50	0~-0.030	h5	4
SEME7102010		2	6	10		50	0~-0.030	h5	4
SEME7102010E		2	6	10		50	0~-0.030	h5	4
SEME7102012		2	6	12		50	0~-0.030	h5	4
SEME7102012E		2	6	12		50	0~-0.030	h5	4
SEME71020E		2	6	6		50	0~-0.030	h5	4
SEME71025		2.5	6	10		50	0~-0.030	h5	4
SEME71025		2.5	6	7		50	0~-0.030	h5	4
SEME71025025		2.5	6	2.5		40	0~-0.030	h5	4
SEME71025025E		2.5	6	2.5		40	0~-0.030	h5	4
SEME7102505		2.5	6	5		40	0~-0.030	h5	4
SEME7102505E		2.5	6	5		40	0~-0.030	h5	4
SEME7102510		2.5	6	10		50	0~-0.030	h5	4
SEME7102510E		2.5	6	10		50	0~-0.030	h5	4
SEME7102512		2.5	6	12		50	0~-0.030	h5	4
SEME7102512E		2.5	6	12		50	0~-0.030	h5	4
SEME71025E		2.5	6	7		50	0~-0.030	h5	4
SEME71030		3	6	10		50	0~-0.030	h5	4
SEME71030		3	6	8		50	0~-0.030	h5	4
SEME7103003		3	6	3		40	0~-0.030	h5	4
SEME7103003E		3	6	3		40	0~-0.030	h5	4
SEME7103006		3	6	6		40	0~-0.030	h5	4
SEME7103006E		3	6	6		40	0~-0.030	h5	4
SEME7103010		3	6	10		50	0~-0.030	h5	4
SEME7103010E		3	6	10		50	0~-0.030	h5	4
SEME7103012		3	6	12		50	0~-0.030	h5	4
SEME7103012E		3	6	12		50	0~-0.030	h5	4
SEME7103014		3	6	14		50	0~-0.030	h5	4
SEME7103014E		3	6	14		50	0~-0.030	h5	4
SEME71030E		3	6	8		50	0~-0.030	h5	4
SEME71040		4	6	10		50	0~-0.030	h5	4
SEME71040		4	6	12		50	0~-0.030	h5	4
SEME7104004		4	6	4		40	0~-0.030	h5	4
SEME7104004E		4	6	4		40	0~-0.030	h5	4
SEME7104008		4	6	8		40	0~-0.030	h5	4
SEME7104008E		4	6	8		40	0~-0.030	h5	4
SEME7104012		4	6	12		50	0~-0.030	h5	4
SEME7104012E		4	6	12		50	0~-0.030	h5	4
SEME7104014		4	6	14		50	0~-0.030	h5	4
SEME7104014E		4	6	14		50	0~-0.030	h5	4
SEME7104016		4	6	16		50	0~-0.030	h5	4
SEME7104016E		4	6	16		50	0~-0.030	h5	4
SEME71040E		4	6	10		50	0~-0.030	h5	4
SEME71050		5	6	15		60	0~-0.030	h5	4
SEME71050		5	6	20		60	0~-0.030	h5	4
SEME7105005		5	6	5		50	0~-0.030	h5	4
SEME7105005E		5	6	5		50	0~-0.030	h5	4
SEME7105010		5	6	10		50	0~-0.030	h5	4
SEME7105010E		5	6	10		50	0~-0.030	h5	4
SEME7105020		5	6	20		60	0~-0.030	h5	4
SEME7105020E		5	6	20		60	0~-0.030	h5	4
SEME7105025		5	6	25		60	0~-0.030	h5	4
SEME7105025E		5	6	25		60	0~-0.030	h5	4
SEME71050E		5	6	15		60	0~-0.030	h5	4
SEME71060		6	6	15		60	0~-0.030	h5	4
SEME71060		6	6	20		60	0~-0.030	h5	4
SEME7106006		6	6	6		50	0~-0.030	h5	4
SEME7106006E		6	6	6		50	0~-0.030	h5	4
SEME7106012		6	6	12		50	0~-0.030	h5	4
SEME7106012E		6	6	12		50	0~-0.030	h5	4
SEME7106020		6	6	20		60	0~-0.030	h5	4
SEME7106020E		6	6	20		60	0~-0.030	h5	4
SEME7106025		6	6	25		60	0~-0.030	h5	4
SEME7106025E		6	6	25		60	0~-0.030	h5	4
SEME71060E		6	6	15		60	0~-0.030	h5	4
SEME71080		8	8	20		70	0~-0.030	h5	4
SEME71080		8	8	25		70	0~-0.030	h5	4
SEME7108016		8	8	16		60	0~-0.030	h5	4
SEME7108016E		8	8	16		60	0~-0.030	h5	4
SEME7108025		8	8	25		70	0~-0.030	h5	4
SEME7108025E		8	8	25		70	0~-0.030	h5	4
SEME7108030		8	8	30		70	0~-0.030	h5	4
SEME7108030E		8	8	30		70	0~-0.030	h5	4
SEME71080E		8	8	20		70	0~-0.030	h5	4
SEME71100		10	10	25		75	0~-0.030	h5	4
SEME71100		10	10	30		75	0~-0.030	h5	4
SEME7110022		10	10	22		65	0~-0.030	h5	4
SEME7110022E		10	10	22		65	0~-0.030	h5	4
SEME7110030		10	10	30		75	0~-0.030	h5	4
SEME7110030E		10	10	30		75	0~-0.030	h5	4
SEME7110035		10	10	35		75	0~-0.030	h5	4
SEME7110035E		10	10	35		75	0~-0.030	h5	4
SEME71100E		10	10	25		75	0~-0.030	h5	4
SEME71120		12	12	30		80	0~-0.030	h5	4
SEME71120		12	12	35		80	0~-0.030	h5	4
SEME7112026		12	12	26		70	0~-0.030	h5	4
SEME7112026E		12	12	26		70	0~-0.030	h5	4
SEME7112035		12	12	35		80	0~-0.030	h5	4
SEME7112035E		12	12	35		80	0~-0.030	h5	4
SEME7112040		12	12	40		80	0~-0.030	h5	4
SEME7112040E		12	12	40		80	0~-0.030	h5	4
SEME71120E		12	12	30		80	0~-0.030	h5	4
SEME71140		14	16	35		100	0~-0.030	h5	4
SEME71140E		14	16	35		100	0~-0.030	h5	4
SEME71160		16	16	40		100	0~-0.030	h5	4
SEME7116032		16	16	32		100	0~-0.030	h5	4
SEME7116032E		16	16	32		100	0~-0.030	h5	4
SEME71160E		16	16	40		100	0~-0.030	h5	4
SEME71180		18	20	45		100	0~-0.030	h5	4
SEME71180E		18	20	45		100	0~-0.030	h5	4
SEME71200		20	20	45		100	0~-0.030	h5	4
SEME71200E		20	20	45		100	0~-0.030	h5	4

Yêu cầu báo giá

Yêu cầu hỗ trợ báo giá nhanh, khách hàng vui lòng liên hệ Hotline 0902 59 13 12
