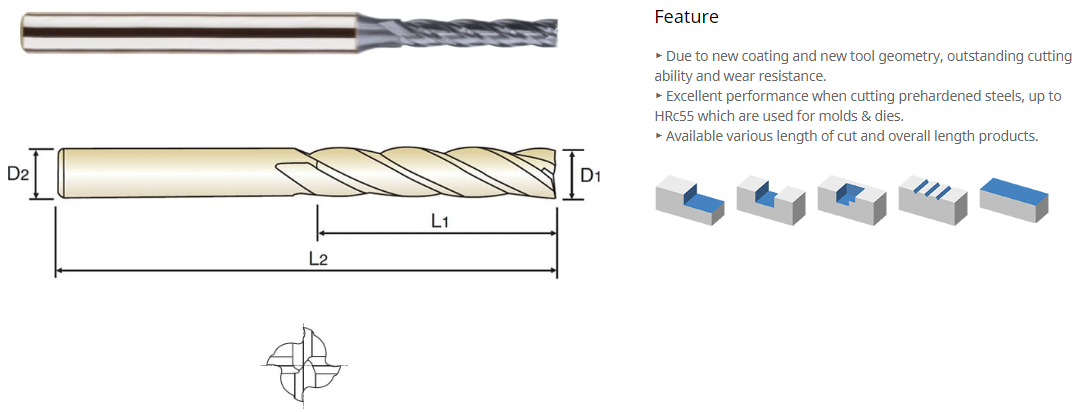

Mũi phay 4 me dài SEME72

Mô tả

EDP No.	R	D1	D2	L1	L3	L2	Mill Dia. Tolerance	Shank Dia.Tolerance	No. of Flute	Taper Angle
SEME7201003		1	6	3		60	0~-0.030	h5	4
SEME7201003E		1	6	3		60	0~-0.030	h5	4
SEME7201004		1	6	4		60	0~-0.030	h5	4
SEME7201004E		1	6	4		60	0~-0.030	h5	4
SEME7201005		1	6	5		60	0~-0.030	h5	4
SEME7201005E		1	6	5		60	0~-0.030	h5	4
SEME7201006		1	6	6		60	0~-0.030	h5	4
SEME7201006E		1	6	6		60	0~-0.030	h5	4
SEME7201007		1	6	7		60	0~-0.030	h5	4
SEME7201007E		1	6	7		60	0~-0.030	h5	4
SEME7201008		1	6	8		60	0~-0.030	h5	4
SEME7201008E		1	6	8		60	0~-0.030	h5	4
SEME7201010		1	6	10		60	0~-0.030	h5	4
SEME7201010E		1	6	10		60	0~-0.030	h5	4
SEME7201012		1	6	12		60	0~-0.030	h5	4
SEME7201012E		1	6	12		60	0~-0.030	h5	4
SEME7201204		1.2	6	4		60	0~-0.030	h5	4
SEME7201204E		1.2	6	4		60	0~-0.030	h5	4
SEME7201206		1.2	6	6		60	0~-0.030	h5	4
SEME7201206E		1.2	6	6		60	0~-0.030	h5	4
SEME7201208		1.2	6	8		60	0~-0.030	h5	4
SEME7201208E		1.2	6	8		60	0~-0.030	h5	4
SEME7201210		1.2	6	10		60	0~-0.030	h5	4
SEME7201210E		1.2	6	10		60	0~-0.030	h5	4
SEME7201212		1.2	6	12		60	0~-0.030	h5	4
SEME7201212E		1.2	6	12		60	0~-0.030	h5	4
SEME7201506		1.5	6	6		60	0~-0.030	h5	4
SEME7201506E		1.5	6	6		60	0~-0.030	h5	4
SEME7201508		1.5	6	8		60	0~-0.030	h5	4
SEME7201508E		1.5	6	8		60	0~-0.030	h5	4
SEME7201510		1.5	6	10		60	0~-0.030	h5	4
SEME7201510E		1.5	6	10		60	0~-0.030	h5	4
SEME7201512		1.5	6	12		60	0~-0.030	h5	4
SEME7201512E		1.5	6	12		60	0~-0.030	h5	4
SEME7201514		1.5	6	14		60	0~-0.030	h5	4
SEME7201514E		1.5	6	14		60	0~-0.030	h5	4
SEME7201516		1.5	6	16		60	0~-0.030	h5	4
SEME7201516E		1.5	6	16		60	0~-0.030	h5	4
SEME7202008		2	6	8		60	0~-0.030	h5	4
SEME7202008E		2	6	8		60	0~-0.030	h5	4
SEME7202010		2	6	10		60	0~-0.030	h5	4
SEME7202010E		2	6	10		60	0~-0.030	h5	4
SEME7202012		2	6	12		60	0~-0.030	h5	4
SEME7202012E		2	6	12		60	0~-0.030	h5	4
SEME7202014		2	6	14		60	0~-0.030	h5	4
SEME7202014E		2	6	14		60	0~-0.030	h5	4
SEME7202016		2	6	16		60	0~-0.030	h5	4
SEME7202016E		2	6	16		60	0~-0.030	h5	4
SEME7202510		2.5	6	10		60	0~-0.030	h5	4
SEME7202510E		2.5	6	10		60	0~-0.030	h5	4
SEME7202512		2.5	6	12		60	0~-0.030	h5	4
SEME7202512E		2.5	6	12		60	0~-0.030	h5	4
SEME7202516		2.5	6	16		60	0~-0.030	h5	4
SEME7202516E		2.5	6	16		60	0~-0.030	h5	4
SEME7202520		2.5	6	20		60	0~-0.030	h5	4
SEME7202520E		2.5	6	20		60	0~-0.030	h5	4
SEME7202526		2.5	6	26		60	0~-0.030	h5	4
SEME7202526E		2.5	6	26		60	0~-0.030	h5	4
SEME7203010		3	6	10		70	0~-0.030	h5	4
SEME7203010		3	6	12		70	0~-0.030	h5	4
SEME7203010E		3	6	10		70	0~-0.030	h5	4
SEME7203012		3	6	12		70	0~-0.030	h5	4
SEME7203012		3	6	14		70	0~-0.030	h5	4
SEME7203012E		3	6	12		70	0~-0.030	h5	4
SEME7203014		3	3	16		100	0~-0.030	h5	4
SEME7203014		3	6	14		70	0~-0.030	h5	4
SEME7203014E		3	3	14		70	0~-0.030	h5	4
SEME7203016		3	6	16		70	0~-0.030	h5	4
SEME72030163S		3	3	16		100	0~-0.030	h5	4
SEME72030163S		3	6	10		70	0~-0.030	h5	4
SEME72030163SE		3	6	16		100	0~-0.030	h5	4
SEME7203016E		3	6	16		70	0~-0.030	h5	4
SEME7203020		3	6	20		70	0~-0.030	h5	4
SEME7203020E		3	6	20		70	0~-0.030	h5	4
SEME7203026		3	6	26		70	0~-0.030	h5	4
SEME7203026E		3	6	26		70	0~-0.030	h5	4
SEME7203030		3	6	30		70	0~-0.030	h5	4
SEME7203030E		3	6	30		70	0~-0.030	h5	4
SEME7204012		4	6	12		70	0~-0.030	h5	4
SEME7204012		4	6	16		70	0~-0.030	h5	4
SEME7204012E		4	6	12		70	0~-0.030	h5	4
SEME7204016		4	4	20		100	0~-0.030	h5	4
SEME7204016		4	6	16		70	0~-0.030	h5	4
SEME7204016E		4	4	16		70	0~-0.030	h5	4
SEME7204020		4	6	20		70	0~-0.030	h5	4
SEME72040204S		4	4	20		100	0~-0.030	h5	4
SEME72040204S		4	6	12		70	0~-0.030	h5	4
SEME72040204SE		4	6	20		100	0~-0.030	h5	4
SEME7204020E		4	6	20		70	0~-0.030	h5	4
SEME7204026		4	6	26		70	0~-0.030	h5	4
SEME7204026E		4	6	26		70	0~-0.030	h5	4
SEME7204030		4	6	30		70	0~-0.030	h5	4
SEME7204030E		4	6	30		70	0~-0.030	h5	4
SEME7205020		5	6	20		70	0~-0.030	h5	4
SEME7205020E		5	6	20		70	0~-0.030	h5	4
SEME7205025		5	6	25		100	0~-0.030	h5	4
SEME7205025		5	6	25		70	0~-0.030	h5	4
SEME7205025100		5	6	25		100	0~-0.030	h5	4
SEME7205025100		5	6	25		70	0~-0.030	h5	4
SEME7205025100E		5	6	25		70	0~-0.030	h5	4
SEME7205025E		5	6	25		70	0~-0.030	h5	4
SEME7205030		5	6	30		80	0~-0.030	h5	4
SEME7205030E		5	6	30		80	0~-0.030	h5	4
SEME7205035		5	6	35		90	0~-0.030	h5	4
SEME7205035E		5	6	35		90	0~-0.030	h5	4
SEME7205040		5	6	40		100	0~-0.030	h5	4
SEME7205040E		5	6	40		100	0~-0.030	h5	4
SEME7206015		6	6	15		60	0~-0.030	h5	4
SEME7206015		6	6	15		80	0~-0.030	h5	4
SEME7206015080		6	6	15		60	0~-0.030	h5	4
SEME7206015080		6	6	15		80	0~-0.030	h5	4
SEME7206015080E		6	6	15		60	0~-0.030	h5	4
SEME7206015E		6	6	15		80	0~-0.030	h5	4
SEME7206020		6	6	20		70	0~-0.030	h5	4
SEME7206020		6	6	20		90	0~-0.030	h5	4
SEME7206020090		6	6	20		70	0~-0.030	h5	4
SEME7206020090		6	6	20		90	0~-0.030	h5	4
SEME7206020090E		6	6	20		70	0~-0.030	h5	4
SEME7206020E		6	6	20		70	0~-0.030	h5	4
SEME7206025		6	6	25		75	0~-0.030	h5	4
SEME7206025E		6	6	25		75	0~-0.030	h5	4
SEME7206030		6	6	30		100	0~-0.030	h5	4
SEME7206030		6	6	30		80	0~-0.030	h5	4
SEME7206030100		6	6	30		100	0~-0.030	h5	4
SEME7206030100		6	6	30		150	0~-0.030	h5	4
SEME7206030100E		6	6	30		100	0~-0.030	h5	4
SEME7206030150		6	6	30		150	0~-0.030	h5	4
SEME7206030150		6	6	30		80	0~-0.030	h5	4
SEME7206030150E		6	6	30		150	0~-0.030	h5	4
SEME7206030E		6	6	30		80	0~-0.030	h5	4
SEME7206035		6	6	35		90	0~-0.030	h5	4
SEME7206035E		6	6	35		90	0~-0.030	h5	4
SEME7206040		6	6	40		120	0~-0.030	h5	4
SEME7206040		6	6	40		90	0~-0.030	h5	4
SEME7206040120		6	6	40		120	0~-0.030	h5	4
SEME7206040120		6	6	40		90	0~-0.030	h5	4
SEME7206040120E		6	6	40		120	0~-0.030	h5	4
SEME7206040E		6	6	40		90	0~-0.030	h5	4
SEME7206045		6	6	45		150	0~-0.030	h5	4
SEME7206045E		6	6	45		150	0~-0.030	h5	4
SEME7208025		8	8	25		80	0~-0.030	h5	4
SEME7208025E		8	8	25		80	0~-0.030	h5	4
SEME7208030		8	8	30		100	0~-0.030	h5	4
SEME7208030		8	8	30		80	0~-0.030	h5	4
SEME7208030100		8	8	30		100	0~-0.030	h5	4
SEME7208030100		8	8	30		80	0~-0.030	h5	4
SEME7208030100E		8	8	30		100	0~-0.030	h5	4
SEME7208030E		8	8	30		80	0~-0.030	h5	4
SEME7208035		8	8	35		90	0~-0.030	h5	4
SEME7208035E		8	8	35		90	0~-0.030	h5	4
SEME7208040		8	8	40		120	0~-0.030	h5	4
SEME7208040		8	8	40		90	0~-0.030	h5	4
SEME7208040120		8	8	40		120	0~-0.030	h5	4
SEME7208040120		8	8	40		150	0~-0.030	h5	4
SEME7208040120E		8	8	40		120	0~-0.030	h5	4
SEME7208040150		8	8	40		150	0~-0.030	h5	4
SEME7208040150		8	8	40		90	0~-0.030	h5	4
SEME7208040150E		8	8	40		150	0~-0.030	h5	4
SEME7208040E		8	8	40		90	0~-0.030	h5	4
SEME7208045		8	8	45		100	0~-0.030	h5	4
SEME7208045E		8	8	45		100	0~-0.030	h5	4
SEME7208050		8	8	50		100	0~-0.030	h5	4
SEME7208050		8	8	50		150	0~-0.030	h5	4
SEME7208050150		8	8	50		100	0~-0.030	h5	4
SEME7208050150		8	8	50		150	0~-0.030	h5	4
SEME7208050150E		8	8	50		150	0~-0.030	h5	4
SEME7208050E		8	8	50		80	0~-0.030	h5	4
SEME7210030		10	10	30		100	0~-0.030	h5	4
SEME7210030		10	10	30		80	0~-0.030	h5	4
SEME7210030100		10	10	30		100	0~-0.030	h5	4
SEME7210030100		10	10	30		80	0~-0.030	h5	4
SEME7210030100E		10	10	30		100	0~-0.030	h5	4
SEME7210030E		10	10	30		100	0~-0.030	h5	4
SEME7210035		10	10	35		90	0~-0.030	h5	4
SEME7210035E		10	10	35		90	0~-0.030	h5	4
SEME7210040		10	10	40		120	0~-0.030	h5	4
SEME7210040		10	10	40		90	0~-0.030	h5	4
SEME7210040120		10	10	40		120	0~-0.030	h5	4
SEME7210040120		10	10	40		90	0~-0.030	h5	4
SEME7210040120E		10	10	40		120	0~-0.030	h5	4
SEME7210040E		10	10	40		90	0~-0.030	h5	4
SEME7210045		10	10	45		100	0~-0.030	h5	4
SEME7210045E		10	10	45		100	0~-0.030	h5	4
SEME7210050		10	10	50		100	0~-0.030	h5	4
SEME7210050		10	10	50		150	0~-0.030	h5	4
SEME7210050150		10	10	50		150	0~-0.030	h5	4
SEME7210050150		10	10	50		200	0~-0.030	h5	4
SEME7210050150E		10	10	50		150	0~-0.030	h5	4
SEME7210050200		10	10	50		100	0~-0.030	h5	4
SEME7210050200		10	10	50		200	0~-0.030	h5	4
SEME7210050200E		10	10	50		200	0~-0.030	h5	4
SEME7210050E		10	10	50		100	0~-0.030	h5	4
SEME7210055		10	10	55		150	0~-0.030	h5	4
SEME7210055E		10	10	55		150	0~-0.030	h5	4
SEME7210060		10	10	60		110	0~-0.030	h5	4
SEME7210060		10	10	60		200	0~-0.030	h5	4
SEME7210060200		10	10	60		110	0~-0.030	h5	4
SEME7210060200		10	10	60		200	0~-0.030	h5	4
SEME7210060200E		10	10	60		200	0~-0.030	h5	4
SEME7210060E		10	10	60		110	0~-0.030	h5	4
SEME7212035		12	12	35		90	0~-0.030	h5	4
SEME7212035E		12	12	35		90	0~-0.030	h5	4
SEME7212040		12	12	40		100	0~-0.030	h5	4
SEME7212040		12	12	40		120	0~-0.030	h5	4
SEME7212040120		12	12	40		100	0~-0.030	h5	4
SEME7212040120		12	12	40		120	0~-0.030	h5	4
SEME7212040120E		12	12	40		120	0~-0.030	h5	4
SEME7212040E		12	12	40		100	0~-0.030	h5	4
SEME7212045		12	12	45		130	0~-0.030	h5	4
SEME7212045E		12	12	45		130	0~-0.030	h5	4
SEME7212050		12	12	50		100	0~-0.030	h5	4
SEME7212050		12	12	50		150	0~-0.030	h5	4
SEME7212050150		12	12	50		100	0~-0.030	h5	4
SEME7212050150		12	12	50		150	0~-0.030	h5	4
SEME7212050150E		12	12	50		150	0~-0.030	h5	4
SEME7212050E		12	12	50		100	0~-0.030	h5	4
SEME7212055		12	12	55		110	0~-0.030	h5	4
SEME7212055E		12	12	55		110	0~-0.030	h5	4
SEME7212060		12	12	60		110	0~-0.030	h5	4
SEME7212060		12	12	60		150	0~-0.030	h5	4
SEME7212060150		12	12	60		150	0~-0.030	h5	4
SEME7212060150		12	12	60		200	0~-0.030	h5	4
SEME7212060150E		12	12	60		150	0~-0.030	h5	4
SEME7212060200		12	12	60		110	0~-0.030	h5	4
SEME7212060200		12	12	60		200	0~-0.030	h5	4
SEME7212060200E		12	12	60		200	0~-0.030	h5	4
SEME7212060E		12	12	60		110	0~-0.030	h5	4
SEME7212065		12	12	65		150	0~-0.030	h5	4
SEME7212065E		12	12	65		150	0~-0.030	h5	4
SEME7212070		12	12	70		120	0~-0.030	h5	4
SEME7212070		12	12	70		200	0~-0.030	h5	4
SEME7212070200		12	12	70		120	0~-0.030	h5	4
SEME7212070200		12	12	70		200	0~-0.030	h5	4
SEME7212070200E		12	12	70		200	0~-0.030	h5	4
SEME7212070E		12	12	70		200	0~-0.030	h5	4
SEME7214050		14	16	50		110	0~-0.030	h5	4
SEME7214050E		14	16	50		110	0~-0.030	h5	4
SEME7214060		14	16	60		150	0~-0.030	h5	4
SEME7214060E		14	16	60		150	0~-0.030	h5	4
SEME72160110		16	16	110		200	0~-0.030	h5	4
SEME72160110		16	16	80		150	0~-0.030	h5	4
SEME72160110E		16	16	110		200	0~-0.030	h5	4
SEME72160120		16	16	120		250	0~-0.030	h5	4
SEME72160120		16	16	90		150	0~-0.030	h5	4
SEME72160120E		16	16	120		250	0~-0.030	h5	4
SEME7216040		16	16	110		200	0~-0.030	h5	4
SEME7216040		16	16	40		150	0~-0.030	h5	4
SEME7216040E		16	16	40		150	0~-0.030	h5	4
SEME7216050		16	16	120		250	0~-0.030	h5	4
SEME7216050		16	16	50		110	0~-0.030	h5	4
SEME7216050150		16	16	40		150	0~-0.030	h5	4
SEME7216050150		16	16	50		150	0~-0.030	h5	4
SEME7216050150E		16	16	50		150	0~-0.030	h5	4
SEME7216050E		16	16	50		110	0~-0.030	h5	4
SEME7216060		16	16	50		150	0~-0.030	h5	4
SEME7216060		16	16	60		120	0~-0.030	h5	4
SEME7216060E		16	16	60		120	0~-0.030	h5	4
SEME7216070		16	16	50		110	0~-0.030	h5	4
SEME7216070		16	16	70		130	0~-0.030	h5	4
SEME7216070150		16	16	60		120	0~-0.030	h5	4
SEME7216070150		16	16	70		150	0~-0.030	h5	4
SEME7216070150E		16	16	50		150	0~-0.030	h5	4
SEME7216070200		16	16	70		150	0~-0.030	h5	4
SEME7216070200		16	16	70		200	0~-0.030	h5	4
SEME7216070200E		16	16	70		200	0~-0.030	h5	4
SEME7216070E		16	16	70		130	0~-0.030	h5	4
SEME7216080		16	16	70		200	0~-0.030	h5	4
SEME7216080		16	16	80		150	0~-0.030	h5	4
SEME7216080E		16	16	80		150	0~-0.030	h5	4
SEME7216090		16	16	70		130	0~-0.030	h5	4
SEME7216090		16	16	90		150	0~-0.030	h5	4
SEME7216090E		16	16	90		150	0~-0.030	h5	4
SEME72180100		18	20	100		200	0~-0.030	h5	4
SEME72180100		18	20	70		130	0~-0.030	h5	4
SEME72180100E		18	20	100		200	0~-0.030	h5	4
SEME7218050		18	20	100		200	0~-0.030	h5	4
SEME7218050		18	20	50		120	0~-0.030	h5	4
SEME7218050E		18	20	50		120	0~-0.030	h5	4
SEME7218070		18	20	50		120	0~-0.030	h5	4
SEME7218070		18	20	70		130	0~-0.030	h5	4
SEME7218070E		18	20	70		130	0~-0.030	h5	4
SEME72200110		20	20	110		200	0~-0.030	h5	4
SEME72200110		20	20	90		200	0~-0.030	h5	4
SEME72200110E		20	20	110		200	0~-0.030	h5	4
SEME72200120		20	20	120		250	0~-0.030	h5	4
SEME72200120		20	20	90		150	0~-0.030	h5	4
SEME72200120E		20	20	120		250	0~-0.030	h5	4
SEME7220050		20	20	110		200	0~-0.030	h5	4
SEME7220050		20	20	50		110	0~-0.030	h5	4
SEME7220050150		20	20	120		250	0~-0.030	h5	4
SEME7220050150		20	20	50		150	0~-0.030	h5	4
SEME7220050150E		20	20	50		150	0~-0.030	h5	4
SEME7220050E		20	20	50		110	0~-0.030	h5	4
SEME7220060		20	20	50		150	0~-0.030	h5	4
SEME7220060		20	20	60		130	0~-0.030	h5	4
SEME7220060E		20	20	60		130	0~-0.030	h5	4
SEME7220070		20	20	50		110	0~-0.030	h5	4
SEME7220070		20	20	70		130	0~-0.030	h5	4
SEME7220070E		20	20	70		130	0~-0.030	h5	4
SEME7220080		20	20	60		130	0~-0.030	h5	4
SEME7220080		20	20	80		150	0~-0.030	h5	4
SEME7220080E		20	20	80		150	0~-0.030	h5	4
SEME7220090		20	20	70		130	0~-0.030	h5	4
SEME7220090		20	20	90		150	0~-0.030	h5	4
SEME7220090200		20	20	80		150	0~-0.030	h5	4
SEME7220090200		20	20	90		200	0~-0.030	h5	4
SEME7220090200E		20	20	90		200	0~-0.030	h5	4
SEME7220090E		20	20	90		150	0~-0.030	h5	4
SEME72220110		22	20	110		200	0~-0.030	h5	4
SEME72220110		22	20	75		150	0~-0.030	h5	4
SEME72220110E		22	20	110		200	0~-0.030	h5	4
SEME7222075		22	20	110		200	0~-0.030	h5	4
SEME7222075		22	20	75		150	0~-0.030	h5	4
SEME7222075E		22	20	75		150	0~-0.030	h5	4
SEME72250110		25	25	110		200	0~-0.030	h5	4
SEME72250110		25	25	70		150	0~-0.030	h5	4
SEME72250110E		25	25	110		200	0~-0.030	h5	4
SEME72250120		25	25	120		250	0~-0.030	h5	4
SEME72250120		25	25	90		150	0~-0.030	h5	4
SEME72250120E		25	25	120		250	0~-0.030	h5	4
SEME7225070		25	25	110		200	0~-0.030	h5	4
SEME7225070		25	25	70		150	0~-0.030	h5	4
SEME7225070E		25	25	70		150	0~-0.030	h5	4
SEME7225090		25	25	120		250	0~-0.030	h5	4
SEME7225090		25	25	90		150	0~-0.030	h5	4
SEME7225090E		25	25	90		150	0~-0.030	h5	4

Yêu cầu báo giá

Yêu cầu hỗ trợ báo giá nhanh, khách hàng vui lòng liên hệ Hotline 0902 59 13 12

Rất tiếc ! Sản phẩm này chưa có Video giới thiệu.

Mũi phay 4 me dài SEME72

Mô tả

Yêu cầu báo giá

Sản phẩm tương tự

Mũi phay 4 me cắt SEME71

Mũi phay cầu 2 me SEMD98

Mũi phay 2 me cắt SEME35

Mũi phay 4 me cổ dài (Corner Radius) SEME64
