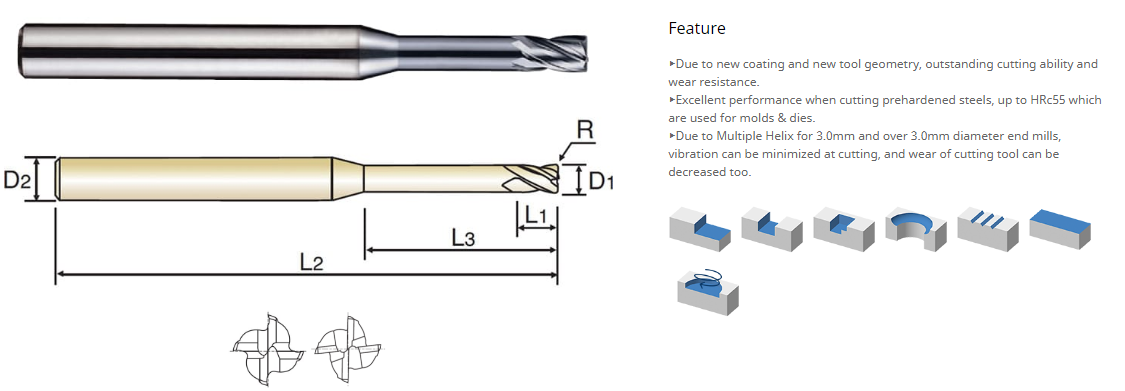

Mũi phay 4 me cổ dài (Corner Radius) SEME64

Mô tả

EDP No.	R	D1	D2	L1	L3	L2	Mill Dia. Tolerance	Shank Dia.Tolerance	No. of Flute	Taper Angle
SEME6401000503	R0.05	1	4	1.5	3	50	0~-0.030	h5	4
SEME6401000503E	R0.05	1	4	1.5	3	50	0~-0.030	h5	4
SEME6401000504	R0.05	1	4	1.5	4	50	0~-0.030	h5	4
SEME6401000504E	R0.05	1	4	1.5	4	50	0~-0.030	h5	4
SEME6401000506	R0.05	1	4	1.5	6	50	0~-0.030	h5	4
SEME6401000506E	R0.05	1	4	1.5	6	50	0~-0.030	h5	4
SEME6401000508	R0.05	1	4	1.5	8	50	0~-0.030	h5	4
SEME6401000508E	R0.05	1	4	1.5	8	50	0~-0.030	h5	4
SEME6401000510	R0.05	1	4	1.5	10	50	0~-0.030	h5	4
SEME6401000510E	R0.05	1	4	1.5	10	50	0~-0.030	h5	4
SEME6401000512	R0.05	1	4	1.5	12	50	0~-0.030	h5	4
SEME6401000512E	R0.05	1	4	1.5	12	50	0~-0.030	h5	4
SEME6401000514	R0.05	1	4	1.5	14	50	0~-0.030	h5	4
SEME6401000514E	R0.05	1	4	1.5	14	50	0~-0.030	h5	4
SEME6401000516	R0.05	1	4	1.5	16	50	0~-0.030	h5	4
SEME6401000516E	R0.05	1	4	1.5	16	50	0~-0.030	h5	4
SEME6401000520	R0.05	1	4	1.5	20	50	0~-0.030	h5	4
SEME6401000520E	R0.05	1	4	1.5	20	50	0~-0.030	h5	4
SEME640100103	R0.10	1	4	1.5	3	50	0~-0.030	h5	4
SEME640100103E	R0.10	1	4	1.5	3	50	0~-0.030	h5	4
SEME640100104	R0.10	1	4	1.5	4	50	0~-0.030	h5	4
SEME640100104E	R0.10	1	4	1.5	4	50	0~-0.030	h5	4
SEME640100106	R0.10	1	4	1.5	6	50	0~-0.030	h5	4
SEME640100106E	R0.10	1	4	1.5	6	50	0~-0.030	h5	4
SEME640100108	R0.10	1	4	1.5	8	50	0~-0.030	h5	4
SEME640100108E	R0.10	1	4	1.5	8	50	0~-0.030	h5	4
SEME640100110	R0.10	1	4	1.5	10	50	0~-0.030	h5	4
SEME640100110E	R0.10	1	4	1.5	10	50	0~-0.030	h5	4
SEME640100112	R0.10	1	4	1.5	12	50	0~-0.030	h5	4
SEME640100112E	R0.10	1	4	1.5	12	50	0~-0.030	h5	4
SEME640100114	R0.10	1	4	1.5	14	50	0~-0.030	h5	4
SEME640100114E	R0.10	1	4	1.5	14	50	0~-0.030	h5	4
SEME640100116	R0.10	1	4	1.5	16	50	0~-0.030	h5	4
SEME640100116E	R0.10	1	4	1.5	16	50	0~-0.030	h5	4
SEME640100120	R0.10	1	4	1.5	20	50	0~-0.030	h5	4
SEME640100120E	R0.10	1	4	1.5	20	50	0~-0.030	h5	4
SEME640100203	R0.20	1	4	1.5	3	50	0~-0.030	h5	4
SEME640100203E	R0.20	1	4	1.5	3	50	0~-0.030	h5	4
SEME640100204	R0.20	1	4	1.5	4	50	0~-0.030	h5	4
SEME640100204E	R0.20	1	4	1.5	4	50	0~-0.030	h5	4
SEME640100206	R0.20	1	4	1.5	6	50	0~-0.030	h5	4
SEME640100206E	R0.20	1	4	1.5	6	50	0~-0.030	h5	4
SEME640100208	R0.20	1	4	1.5	8	50	0~-0.030	h5	4
SEME640100208E	R0.20	1	4	1.5	8	50	0~-0.030	h5	4
SEME640100210	R0.20	1	4	1.5	10	50	0~-0.030	h5	4
SEME640100210E	R0.20	1	4	1.5	10	50	0~-0.030	h5	4
SEME640100212	R0.20	1	4	1.5	12	50	0~-0.030	h5	4
SEME640100212E	R0.20	1	4	1.5	12	50	0~-0.030	h5	4
SEME640100214	R0.20	1	4	1.5	14	50	0~-0.030	h5	4
SEME640100214E	R0.20	1	4	1.5	14	50	0~-0.030	h5	4
SEME640100216	R0.20	1	4	1.5	16	50	0~-0.030	h5	4
SEME640100216E	R0.20	1	4	1.5	16	50	0~-0.030	h5	4
SEME640100220	R0.20	1	4	1.5	20	50	0~-0.030	h5	4
SEME640100220E	R0.20	1	4	1.5	20	50	0~-0.030	h5	4
SEME640100303	R0.30	1	4	1.5	3	50	0~-0.030	h5	4
SEME640100303E	R0.30	1	4	1.5	3	50	0~-0.030	h5	4
SEME640100304	R0.30	1	4	1.5	4	50	0~-0.030	h5	4
SEME640100304E	R0.30	1	4	1.5	4	50	0~-0.030	h5	4
SEME640100306	R0.30	1	4	1.5	6	50	0~-0.030	h5	4
SEME640100306E	R0.30	1	4	1.5	6	50	0~-0.030	h5	4
SEME640100308	R0.30	1	4	1.5	8	50	0~-0.030	h5	4
SEME640100308E	R0.30	1	4	1.5	8	50	0~-0.030	h5	4
SEME640100310	R0.30	1	4	1.5	10	50	0~-0.030	h5	4
SEME640100310E	R0.30	1	4	1.5	10	50	0~-0.030	h5	4
SEME640100312	R0.30	1	4	1.5	12	50	0~-0.030	h5	4
SEME640100312E	R0.30	1	4	1.5	12	50	0~-0.030	h5	4
SEME640100314	R0.30	1	4	1.5	14	50	0~-0.030	h5	4
SEME640100314E	R0.30	1	4	1.5	14	50	0~-0.030	h5	4
SEME640100316	R0.30	1	4	1.5	16	50	0~-0.030	h5	4
SEME640100316E	R0.30	1	4	1.5	16	50	0~-0.030	h5	4
SEME640100320	R0.30	1	4	1.5	20	50	0~-0.030	h5	4
SEME640100320E	R0.30	1	4	1.5	20	50	0~-0.030	h5	4
SEME6401200503	R0.05	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME6401200503E	R0.05	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME6401200504	R0.05	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME6401200504E	R0.05	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME6401200506	R0.05	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME6401200506E	R0.05	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME6401200508	R0.05	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME6401200508E	R0.05	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME6401200510	R0.05	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME6401200510E	R0.05	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME6401200512	R0.05	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME6401200512E	R0.05	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME6401200516	R0.05	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME6401200516E	R0.05	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME6401200520	R0.05	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME6401200520E	R0.05	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME640120103	R0.10	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME640120103E	R0.10	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME640120104	R0.10	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME640120104E	R0.10	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME640120106	R0.10	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME640120106E	R0.10	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME640120108	R0.10	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME640120108E	R0.10	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME640120110	R0.10	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME640120110E	R0.10	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME640120112	R0.10	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME640120112E	R0.10	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME640120116	R0.10	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME640120116E	R0.10	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME640120120	R0.10	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME640120120E	R0.10	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME640120203	R0.20	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME640120203E	R0.20	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME640120204	R0.20	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME640120204E	R0.20	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME640120206	R0.20	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME640120206E	R0.20	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME640120208	R0.20	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME640120208E	R0.20	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME640120210	R0.20	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME640120210E	R0.20	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME640120212	R0.20	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME640120212E	R0.20	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME640120216	R0.20	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME640120216E	R0.20	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME640120220	R0.20	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME640120220E	R0.20	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME640120303	R0.30	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME640120303E	R0.30	1.2	4	1.8	3	50	0~-0.030	h5	4
SEME640120304	R0.30	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME640120304E	R0.30	1.2	4	1.8	4	50	0~-0.030	h5	4
SEME640120306	R0.30	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME640120306E	R0.30	1.2	4	1.8	6	50	0~-0.030	h5	4
SEME640120308	R0.30	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME640120308E	R0.30	1.2	4	1.8	8	50	0~-0.030	h5	4
SEME640120310	R0.30	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME640120310E	R0.30	1.2	4	1.8	10	50	0~-0.030	h5	4
SEME640120312	R0.30	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME640120312E	R0.30	1.2	4	1.8	12	50	0~-0.030	h5	4
SEME640120316	R0.30	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME640120316E	R0.30	1.2	4	1.8	16	50	0~-0.030	h5	4
SEME640120320	R0.30	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME640120320E	R0.30	1.2	4	1.8	20	50	0~-0.030	h5	4
SEME6401500504	R0.05	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME6401500504E	R0.05	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME6401500506	R0.05	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME6401500506E	R0.05	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME6401500508	R0.05	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME6401500508E	R0.05	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME6401500510	R0.05	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME6401500510E	R0.05	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME6401500512	R0.05	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME6401500512E	R0.05	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME6401500514	R0.05	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME6401500514E	R0.05	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME6401500516	R0.05	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME6401500516E	R0.05	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME6401500520	R0.05	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME6401500520E	R0.05	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME6401500522	R0.05	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME6401500522E	R0.05	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME6401500526	R0.05	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME6401500526E	R0.05	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150104	R0.10	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150104E	R0.10	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150106	R0.10	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150106E	R0.10	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150108	R0.10	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150108E	R0.10	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150110	R0.10	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150110E	R0.10	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150112	R0.10	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150112E	R0.10	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150114	R0.10	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150114E	R0.10	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150116	R0.10	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150116E	R0.10	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150118E	R0.1	1.5	4	2.3	18	50	0~-0.030	h5	4
SEME640150120	R0.10	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150120E	R0.10	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150122	R0.10	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150122E	R0.10	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150126	R0.10	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150126E	R0.10	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150204	R0.20	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150204E	R0.20	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150206	R0.20	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150206E	R0.20	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150208	R0.20	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150208E	R0.20	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150210	R0.20	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150210E	R0.20	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150212	R0.20	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150212E	R0.20	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150214	R0.20	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150214E	R0.20	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150216	R0.20	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150216E	R0.20	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150220	R0.20	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150220E	R0.20	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150222	R0.20	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150222E	R0.20	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150226	R0.20	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150226E	R0.20	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150304	R0.30	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150304E	R0.30	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150306	R0.30	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150306E	R0.30	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150308	R0.30	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150308E	R0.30	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150310	R0.30	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150310E	R0.30	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150312	R0.30	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150312E	R0.30	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150314	R0.30	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150314E	R0.30	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150316	R0.30	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150316E	R0.30	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150320	R0.30	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150320E	R0.30	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150322	R0.30	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150322E	R0.30	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150326	R0.30	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150326E	R0.30	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150504	R0.50	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150504E	R0.50	1.5	4	2.3	4	50	0~-0.030	h5	4
SEME640150506	R0.50	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150506E	R0.50	1.5	4	2.3	6	50	0~-0.030	h5	4
SEME640150508	R0.50	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150508E	R0.50	1.5	4	2.3	8	50	0~-0.030	h5	4
SEME640150510	R0.50	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150510E	R0.50	1.5	4	2.3	10	50	0~-0.030	h5	4
SEME640150512	R0.50	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150512E	R0.50	1.5	4	2.3	12	50	0~-0.030	h5	4
SEME640150514	R0.50	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150514E	R0.50	1.5	4	2.3	14	50	0~-0.030	h5	4
SEME640150516	R0.50	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150516E	R0.50	1.5	4	2.3	16	50	0~-0.030	h5	4
SEME640150520	R0.50	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150520E	R0.50	1.5	4	2.3	20	50	0~-0.030	h5	4
SEME640150522	R0.50	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150522E	R0.50	1.5	4	2.3	22	60	0~-0.030	h5	4
SEME640150526	R0.50	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640150526E	R0.50	1.5	4	2.3	26	60	0~-0.030	h5	4
SEME640200106	R0.10	2	4	3	6	50	0~-0.030	h5	4
SEME640200106E	R0.10	2	4	3	6	50	0~-0.030	h5	4
SEME640200108	R0.10	2	4	3	8	50	0~-0.030	h5	4
SEME640200108E	R0.10	2	4	3	8	50	0~-0.030	h5	4
SEME640200110	R0.10	2	4	3	10	50	0~-0.030	h5	4
SEME640200110E	R0.10	2	4	3	10	50	0~-0.030	h5	4
SEME640200112	R0.10	2	4	3	12	50	0~-0.030	h5	4
SEME640200112E	R0.10	2	4	3	12	50	0~-0.030	h5	4
SEME640200114	R0.10	2	4	3	14	50	0~-0.030	h5	4
SEME640200114E	R0.10	2	4	3	14	50	0~-0.030	h5	4
SEME640200116	R0.10	2	4	3	16	50	0~-0.030	h5	4
SEME640200116E	R0.10	2	4	3	16	50	0~-0.030	h5	4
SEME640200120	R0.10	2	4	3	20	50	0~-0.030	h5	4
SEME640200120E	R0.10	2	4	3	20	50	0~-0.030	h5	4
SEME640200122	R0.10	2	4	3	22	60	0~-0.030	h5	4
SEME640200122E	R0.10	2	4	3	22	60	0~-0.030	h5	4
SEME640200126	R0.10	2	4	3	26	60	0~-0.030	h5	4
SEME640200126E	R0.10	2	4	3	26	60	0~-0.030	h5	4
SEME640200130	R0.10	2	4	3	30	70	0~-0.030	h5	4
SEME640200130E	R0.10	2	4	3	30	70	0~-0.030	h5	4
SEME640200206	R0.20	2	4	3	6	50	0~-0.030	h5	4
SEME640200206E	R0.20	2	4	3	6	50	0~-0.030	h5	4
SEME640200208	R0.20	2	4	3	8	50	0~-0.030	h5	4
SEME640200208E	R0.20	2	4	3	8	50	0~-0.030	h5	4
SEME640200210	R0.20	2	4	3	10	50	0~-0.030	h5	4
SEME640200210E	R0.20	2	4	3	10	50	0~-0.030	h5	4
SEME640200212	R0.20	2	4	3	12	50	0~-0.030	h5	4
SEME640200212E	R0.20	2	4	3	12	50	0~-0.030	h5	4
SEME640200214	R0.20	2	4	3	14	50	0~-0.030	h5	4
SEME640200214E	R0.20	2	4	3	14	50	0~-0.030	h5	4
SEME640200216	R0.20	2	4	3	16	50	0~-0.030	h5	4
SEME640200216E	R0.20	2	4	3	16	50	0~-0.030	h5	4
SEME640200220	R0.20	2	4	3	20	50	0~-0.030	h5	4
SEME640200220E	R0.20	2	4	3	20	50	0~-0.030	h5	4
SEME640200222	R0.20	2	4	3	22	60	0~-0.030	h5	4
SEME640200222E	R0.20	2	4	3	22	60	0~-0.030	h5	4
SEME640200226	R0.20	2	4	3	26	60	0~-0.030	h5	4
SEME640200226E	R0.20	2	4	3	26	60	0~-0.030	h5	4
SEME640200230	R0.20	2	4	3	30	70	0~-0.030	h5	4
SEME640200230E	R0.20	2	4	3	30	70	0~-0.030	h5	4
SEME640200306	R0.30	2	4	3	6	50	0~-0.030	h5	4
SEME640200306E	R0.30	2	4	3	6	50	0~-0.030	h5	4
SEME640200308	R0.30	2	4	3	8	50	0~-0.030	h5	4
SEME640200308E	R0.30	2	4	3	8	50	0~-0.030	h5	4
SEME640200310	R0.30	2	4	3	10	50	0~-0.030	h5	4
SEME640200310E	R0.30	2	4	3	10	50	0~-0.030	h5	4
SEME640200312	R0.30	2	4	3	12	50	0~-0.030	h5	4
SEME640200312E	R0.30	2	4	3	12	50	0~-0.030	h5	4
SEME640200314	R0.30	2	4	3	14	50	0~-0.030	h5	4
SEME640200314E	R0.30	2	4	3	14	50	0~-0.030	h5	4
SEME640200316	R0.30	2	4	3	16	50	0~-0.030	h5	4
SEME640200316E	R0.30	2	4	3	16	50	0~-0.030	h5	4
SEME640200320	R0.30	2	4	3	20	50	0~-0.030	h5	4
SEME640200320E	R0.30	2	4	3	20	50	0~-0.030	h5	4
SEME640200322	R0.30	2	4	3	22	60	0~-0.030	h5	4
SEME640200322E	R0.30	2	4	3	22	60	0~-0.030	h5	4
SEME640200326	R0.30	2	4	3	26	60	0~-0.030	h5	4
SEME640200326E	R0.30	2	4	3	26	60	0~-0.030	h5	4
SEME640200330	R0.30	2	4	3	30	70	0~-0.030	h5	4
SEME640200330E	R0.30	2	4	3	30	70	0~-0.030	h5	4
SEME640200506	R0.50	2	4	3	6	50	0~-0.030	h5	4
SEME640200506E	R0.50	2	4	3	6	50	0~-0.030	h5	4
SEME640200508	R0.50	2	4	3	8	50	0~-0.030	h5	4
SEME640200508E	R0.50	2	4	3	8	50	0~-0.030	h5	4
SEME640200510	R0.50	2	4	3	10	50	0~-0.030	h5	4
SEME640200510	R0.50	2	4	3	10	50	0~-0.030	h5	4
SEME640200510E	R0.50	2	4	3	10	50	0~-0.030	h5	4
SEME640200512	R0.50	2	4	3	12	50	0~-0.030	h5	4
SEME640200512	R0.50	2	4	3	12	50	0~-0.030	h5	4
SEME640200512E	R0.50	2	4	3	12	50	0~-0.030	h5	4
SEME640200514	R0.50	2	4	3	14	50	0~-0.030	h5	4
SEME640200514	R0.50	2	4	3	14	50	0~-0.030	h5	4
SEME640200514E	R0.50	2	4	3	14	50	0~-0.030	h5	4
SEME640200516	R0.50	2	4	3	16	50	0~-0.030	h5	4
SEME640200516	R0.50	2	4	3	16	50	0~-0.030	h5	4
SEME640200516E	R0.50	2	4	3	16	50	0~-0.030	h5	4
SEME640200520	R0.50	2	4	3	20	50	0~-0.030	h5	4
SEME640200520	R0.50	2	4	3	20	50	0~-0.030	h5	4
SEME640200520E	R0.50	2	4	3	20	50	0~-0.030	h5	4
SEME640200522	R0.50	2	4	3	22	60	0~-0.030	h5	4
SEME640200522	R0.50	2	4	3	22	60	0~-0.030	h5	4
SEME640200522E	R0.50	2	4	3	22	60	0~-0.030	h5	4
SEME640200526	R0.50	2	4	3	26	60	0~-0.030	h5	4
SEME640200526	R0.50	2	4	3	26	60	0~-0.030	h5	4
SEME640200526E	R0.50	2	4	3	26	60	0~-0.030	h5	4
SEME640200530	R0.50	2	4	3	30	70	0~-0.030	h5	4
SEME640200530	R0.50	2	4	3	30	70	0~-0.030	h5	4
SEME640200530E	R0.50	2	4	3	30	70	0~-0.030	h5	4
SEME640250108	R0.10	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250108	R0.10	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250108E	R0.10	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250110	R0.10	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250110	R0.10	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250110E	R0.10	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250112	R0.10	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250112	R0.10	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250112E	R0.10	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250114	R0.10	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250114	R0.10	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250114E	R0.10	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250116	R0.10	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250116	R0.10	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250116E	R0.10	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250120	R0.10	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250120	R0.10	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250120E	R0.10	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250126	R0.10	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250126	R0.10	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250126E	R0.10	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250130	R0.10	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250130	R0.10	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250130E	R0.10	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250208	R0.20	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250208	R0.20	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250208E	R0.20	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250210	R0.20	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250210	R0.20	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250210E	R0.20	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250212	R0.20	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250212	R0.20	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250212E	R0.20	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250214	R0.20	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250214	R0.20	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250214E	R0.20	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250216	R0.20	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250216	R0.20	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250216E	R0.20	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250220	R0.20	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250220	R0.20	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250220E	R0.20	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250226	R0.20	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250226	R0.20	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250226E	R0.20	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250230	R0.20	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250230	R0.20	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250230E	R0.20	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250308	R0.30	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250308	R0.30	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250308E	R0.30	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250310	R0.30	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250310	R0.30	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250310E	R0.30	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250312	R0.30	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250312	R0.30	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250312E	R0.30	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250314	R0.30	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250314	R0.30	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250314E	R0.30	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250316	R0.30	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250316	R0.30	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250316E	R0.30	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250320	R0.30	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250320	R0.30	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250320E	R0.30	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250326	R0.30	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250326E	R0.30	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250330	R0.30	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250330E	R0.30	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250508	R0.50	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250508E	R0.50	2.5	4	4	8	50	0~-0.030	h5	4
SEME640250510	R0.50	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250510E	R0.50	2.5	4	4	10	50	0~-0.030	h5	4
SEME640250512	R0.50	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250512E	R0.50	2.5	4	4	12	50	0~-0.030	h5	4
SEME640250514	R0.50	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250514E	R0.50	2.5	4	4	14	50	0~-0.030	h5	4
SEME640250516	R0.50	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250516E	R0.50	2.5	4	4	16	50	0~-0.030	h5	4
SEME640250520	R0.50	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250520E	R0.50	2.5	4	4	20	50	0~-0.030	h5	4
SEME640250526	R0.50	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250526E	R0.50	2.5	4	4	26	60	0~-0.030	h5	4
SEME640250530	R0.50	2.5	4	4	30	70	0~-0.030	h5	4
SEME640250530E	R0.50	2.5	4	4	30	70	0~-0.030	h5	4
SEME640300108	R0.10	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300108E	R0.10	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300110	R0.10	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300110E	R0.10	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300112	R0.10	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300112E	R0.10	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300114	R0.10	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300114E	R0.10	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300116	R0.10	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300116E	R0.10	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300120	R0.10	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300120E	R0.10	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300126	R0.10	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300126E	R0.10	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300130	R0.10	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300130E	R0.10	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300135	R0.10	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300135E	R0.10	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300140	R0.10	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300140E	R0.10	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300208	R0.20	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300208E	R0.20	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300210	R0.20	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300210E	R0.20	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300212	R0.20	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300212E	R0.20	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300214	R0.20	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300214E	R0.20	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300216	R0.20	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300216E	R0.20	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300218E	R0.2	3	6	4.5	18	60	0~-0.030	h5	4
SEME640300220	R0.20	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300220E	R0.20	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300226	R0.20	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300226E	R0.20	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300230	R0.20	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300230E	R0.20	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300235	R0.20	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300235E	R0.20	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300240	R0.20	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300240E	R0.20	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300308	R0.30	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300308E	R0.30	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300310	R0.30	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300310E	R0.30	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300312	R0.30	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300312E	R0.30	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300314	R0.30	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300314E	R0.30	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300316	R0.30	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300316E	R0.30	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300320	R0.30	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300320E	R0.30	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300326	R0.30	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300326E	R0.30	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300330	R0.30	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300330E	R0.30	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300335	R0.30	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300335E	R0.30	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300340	R0.30	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300340E	R0.30	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300508	R0.50	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300508E	R0.50	3	6	4.5	8	50	0~-0.030	h5	4
SEME640300510	R0.50	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300510E	R0.50	3	6	4.5	10	50	0~-0.030	h5	4
SEME640300512	R0.50	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300512E	R0.50	3	6	4.5	12	50	0~-0.030	h5	4
SEME640300514	R0.50	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300514E	R0.50	3	6	4.5	14	60	0~-0.030	h5	4
SEME640300516	R0.50	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300516E	R0.50	3	6	4.5	16	60	0~-0.030	h5	4
SEME640300520	R0.50	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300520E	R0.50	3	6	4.5	20	60	0~-0.030	h5	4
SEME640300526	R0.50	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300526E	R0.50	3	6	4.5	26	65	0~-0.030	h5	4
SEME640300530	R0.50	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300530E	R0.50	3	6	4.5	30	70	0~-0.030	h5	4
SEME640300535	R0.50	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300535E	R0.50	3	6	4.5	35	70	0~-0.030	h5	4
SEME640300540	R0.50	3	6	4.5	40	80	0~-0.030	h5	4
SEME640300540E	R0.50	3	6	4.5	40	80	0~-0.030	h5	4
SEME640301008	R1.0	3	6	4.5	8	50	0~-0.030	h5	4
SEME640301008E	R1.0	3	6	4.5	8	50	0~-0.030	h5	4
SEME640301010	R1.0	3	6	4.5	10	50	0~-0.030	h5	4
SEME640301010E	R1.0	3	6	4.5	10	50	0~-0.030	h5	4
SEME640301012	R1.0	3	6	4.5	12	50	0~-0.030	h5	4
SEME640301012E	R1.0	3	6	4.5	12	50	0~-0.030	h5	4
SEME640301014	R1.0	3	6	4.5	14	60	0~-0.030	h5	4
SEME640301014E	R1.0	3	6	4.5	14	60	0~-0.030	h5	4
SEME640301016	R1.0	3	6	4.5	16	60	0~-0.030	h5	4
SEME640301016E	R1.0	3	6	4.5	16	60	0~-0.030	h5	4
SEME640301020	R1.0	3	6	4.5	20	60	0~-0.030	h5	4
SEME640301020E	R1.0	3	6	4.5	20	60	0~-0.030	h5	4
SEME640301026	R1.0	3	6	4.5	26	65	0~-0.030	h5	4
SEME640301026E	R1.0	3	6	4.5	26	65	0~-0.030	h5	4
SEME640301030	R1.0	3	6	4.5	30	70	0~-0.030	h5	4
SEME640301030E	R1.0	3	6	4.5	30	70	0~-0.030	h5	4
SEME640301035	R1.0	3	6	4.5	35	70	0~-0.030	h5	4
SEME640301035E	R1.0	3	6	4.5	35	70	0~-0.030	h5	4
SEME640301040	R1.0	3	6	4.5	40	80	0~-0.030	h5	4
SEME640301040E	R1.0	3	6	4.5	40	80	0~-0.030	h5	4
SEME640400110	R0.10	4	6	6	10	50	0~-0.030	h5	4
SEME640400110E	R0.10	4	6	6	10	50	0~-0.030	h5	4
SEME640400112	R0.10	4	6	6	12	50	0~-0.030	h5	4
SEME640400112E	R0.10	4	6	6	12	50	0~-0.030	h5	4
SEME640400114	R0.10	4	6	6	14	60	0~-0.030	h5	4
SEME640400114E	R0.10	4	6	6	14	60	0~-0.030	h5	4
SEME640400116	R0.10	4	6	6	16	60	0~-0.030	h5	4
SEME640400116E	R0.10	4	6	6	16	60	0~-0.030	h5	4
SEME640400120	R0.10	4	6	6	20	60	0~-0.030	h5	4
SEME640400120E	R0.10	4	6	6	20	60	0~-0.030	h5	4
SEME640400126	R0.10	4	6	6	26	65	0~-0.030	h5	4
SEME640400126E	R0.10	4	6	6	26	65	0~-0.030	h5	4
SEME640400130	R0.10	4	6	6	30	70	0~-0.030	h5	4
SEME640400130E	R0.10	4	6	6	30	70	0~-0.030	h5	4
SEME640400135	R0.10	4	6	6	35	70	0~-0.030	h5	4
SEME640400135E	R0.10	4	6	6	35	70	0~-0.030	h5	4
SEME640400140	R0.10	4	6	6	40	80	0~-0.030	h5	4
SEME640400140E	R0.10	4	6	6	40	80	0~-0.030	h5	4
SEME640400145	R0.10	4	6	6	45	90	0~-0.030	h5	4
SEME640400145E	R0.10	4	6	6	45	90	0~-0.030	h5	4
SEME640400150	R0.10	4	6	6	50	100	0~-0.030	h5	4
SEME640400150E	R0.10	4	6	6	50	100	0~-0.030	h5	4
SEME640400210	R0.20	4	6	6	10	50	0~-0.030	h5	4
SEME640400210E	R0.20	4	6	6	10	50	0~-0.030	h5	4
SEME640400212	R0.20	4	6	6	12	50	0~-0.030	h5	4
SEME640400212E	R0.20	4	6	6	12	50	0~-0.030	h5	4
SEME640400214	R0.20	4	6	6	14	60	0~-0.030	h5	4
SEME640400214E	R0.20	4	6	6	14	60	0~-0.030	h5	4
SEME640400216	R0.20	4	6	6	16	60	0~-0.030	h5	4
SEME640400216E	R0.20	4	6	6	16	60	0~-0.030	h5	4
SEME640400220	R0.20	4	6	6	20	60	0~-0.030	h5	4
SEME640400220E	R0.20	4	6	6	20	60	0~-0.030	h5	4
SEME640400224E	R0.2	4	6	6	24	65	0~-0.030	h5	4
SEME640400226	R0.20	4	6	6	26	65	0~-0.030	h5	4
SEME640400226E	R0.20	4	6	6	26	65	0~-0.030	h5	4
SEME640400230	R0.20	4	6	6	30	70	0~-0.030	h5	4
SEME640400230E	R0.20	4	6	6	30	70	0~-0.030	h5	4
SEME640400235	R0.20	4	6	6	35	70	0~-0.030	h5	4
SEME640400235E	R0.20	4	6	6	35	70	0~-0.030	h5	4
SEME640400240	R0.20	4	6	6	40	80	0~-0.030	h5	4
SEME640400240E	R0.20	4	6	6	40	80	0~-0.030	h5	4
SEME640400245	R0.20	4	6	6	45	90	0~-0.030	h5	4
SEME640400245E	R0.20	4	6	6	45	90	0~-0.030	h5	4
SEME640400250	R0.20	4	6	6	50	100	0~-0.030	h5	4
SEME640400250E	R0.20	4	6	6	50	100	0~-0.030	h5	4
SEME640400310	R0.30	4	6	6	10	50	0~-0.030	h5	4
SEME640400310E	R0.30	4	6	6	10	50	0~-0.030	h5	4
SEME640400312	R0.30	4	6	6	12	50	0~-0.030	h5	4
SEME640400312E	R0.30	4	6	6	12	50	0~-0.030	h5	4
SEME640400314	R0.30	4	6	6	14	60	0~-0.030	h5	4
SEME640400314E	R0.30	4	6	6	14	60	0~-0.030	h5	4
SEME640400316	R0.30	4	6	6	16	60	0~-0.030	h5	4
SEME640400316E	R0.30	4	6	6	16	60	0~-0.030	h5	4
SEME640400320	R0.30	4	6	6	20	60	0~-0.030	h5	4
SEME640400320E	R0.30	4	6	6	20	60	0~-0.030	h5	4
SEME640400326	R0.30	4	6	6	26	65	0~-0.030	h5	4
SEME640400326E	R0.30	4	6	6	26	65	0~-0.030	h5	4
SEME640400330	R0.30	4	6	6	30	70	0~-0.030	h5	4
SEME640400330E	R0.30	4	6	6	30	70	0~-0.030	h5	4
SEME640400335	R0.30	4	6	6	35	70	0~-0.030	h5	4
SEME640400335E	R0.30	4	6	6	35	70	0~-0.030	h5	4
SEME640400340	R0.30	4	6	6	40	80	0~-0.030	h5	4
SEME640400340	R0.30	4	6	6	40	80	0~-0.030	h5	4
SEME640400340E	R0.30	4	6	6	35	70	0~-0.030	h5	4
SEME640400345	R0.30	4	6	6	45	90	0~-0.030	h5	4
SEME640400345E	R0.30	4	6	6	45	90	0~-0.030	h5	4
SEME640400350	R0.30	4	6	6	50	100	0~-0.030	h5	4
SEME640400350E	R0.30	4	6	6	50	100	0~-0.030	h5	4
SEME640400510	R0.50	4	6	6	10	50	0~-0.030	h5	4
SEME640400510E	R0.50	4	6	6	10	50	0~-0.030	h5	4
SEME640400512	R0.50	4	6	6	12	50	0~-0.030	h5	4
SEME640400512E	R0.50	4	6	6	12	50	0~-0.030	h5	4
SEME640400514	R0.50	4	6	6	14	60	0~-0.030	h5	4
SEME640400514E	R0.50	4	6	6	14	60	0~-0.030	h5	4
SEME640400516	R0.50	4	6	6	16	60	0~-0.030	h5	4
SEME640400516E	R0.50	4	6	6	16	60	0~-0.030	h5	4
SEME640400520	R0.50	4	6	6	20	60	0~-0.030	h5	4
SEME640400520E	R0.50	4	6	6	20	60	0~-0.030	h5	4
SEME640400526	R0.50	4	6	6	26	65	0~-0.030	h5	4
SEME640400526E	R0.50	4	6	6	26	65	0~-0.030	h5	4
SEME640400530	R0.50	4	6	6	30	70	0~-0.030	h5	4
SEME640400530E	R0.50	4	6	6	30	70	0~-0.030	h5	4
SEME640400535	R0.50	4	6	6	35	70	0~-0.030	h5	4
SEME640400535E	R0.50	4	6	6	35	70	0~-0.030	h5	4
SEME640400540	R0.50	4	6	6	40	80	0~-0.030	h5	4
SEME640400540E	R0.50	4	6	6	40	80	0~-0.030	h5	4
SEME640400545	R0.50	4	6	6	45	90	0~-0.030	h5	4
SEME640400545E	R0.50	4	6	6	45	90	0~-0.030	h5	4
SEME640400550	R0.50	4	6	6	50	100	0~-0.030	h5	4
SEME640400550E	R0.50	4	6	6	50	100	0~-0.030	h5	4
SEME640401010	R1.0	4	6	6	10	50	0~-0.030	h5	4
SEME640401010E	R1.0	4	6	6	10	50	0~-0.030	h5	4
SEME640401012	R1.0	4	6	6	12	50	0~-0.030	h5	4
SEME640401012E	R1.0	4	6	6	12	50	0~-0.030	h5	4
SEME640401014	R1.0	4	6	6	14	60	0~-0.030	h5	4
SEME640401014E	R1.0	4	6	6	14	60	0~-0.030	h5	4
SEME640401016	R1.0	4	6	6	16	60	0~-0.030	h5	4
SEME640401016E	R1.0	4	6	6	16	60	0~-0.030	h5	4
SEME640401020	R1.0	4	6	6	20	60	0~-0.030	h5	4
SEME640401020E	R1.0	4	6	6	20	60	0~-0.030	h5	4
SEME640401026	R1.0	4	6	6	26	65	0~-0.030	h5	4
SEME640401026E	R1.0	4	6	6	26	65	0~-0.030	h5	4
SEME640401030	R1.0	4	6	6	30	70	0~-0.030	h5	4
SEME640401030E	R1.0	4	6	6	30	70	0~-0.030	h5	4
SEME640401035	R1.0	4	6	6	35	70	0~-0.030	h5	4
SEME640401035E	R1.0	4	6	6	35	70	0~-0.030	h5	4
SEME640401040	R1.0	4	6	6	40	80	0~-0.030	h5	4
SEME640401040E	R1.0	4	6	6	40	80	0~-0.030	h5	4
SEME640401045	R1.0	4	6	6	45	90	0~-0.030	h5	4
SEME640401045E	R1.0	4	6	6	45	90	0~-0.030	h5	4
SEME640401050	R1.0	4	6	6	50	100	0~-0.030	h5	4
SEME640401050E	R1.0	4	6	6	50	100	0~-0.030	h5	4
SEME6405001	R0.10	5	6	8	15	60	0~-0.030	h5	4
SEME6405001E	R0.10	5	6	8	15	60	0~-0.030	h5	4
SEME6405002	R0.20	5	6	8	15	60	0~-0.030	h5	4
SEME6405002E	R0.20	5	6	8	15	60	0~-0.030	h5	4
SEME6405003	R0.30	5	6	8	15	60	0~-0.030	h5	4
SEME6405003E	R0.30	5	6	8	15	60	0~-0.030	h5	4
SEME6405005	R0.50	5	6	8	15	60	0~-0.030	h5	4
SEME6405005E	R0.50	5	6	8	15	60	0~-0.030	h5	4
SEME6405010	R1.0	5	6	8	15	60	0~-0.030	h5	4
SEME6405010E	R1.0	5	6	8	15	60	0~-0.030	h5	4
SEME6405015	R1.5	5	6	8	15	60	0~-0.030	h5	4
SEME6405015E	R1.5	5	6	8	15	60	0~-0.030	h5	4
SEME6405020	R2.0	5	6	8	15	60	0~-0.030	h5	4
SEME6405020E	R2.0	5	6	8	15	60	0~-0.030	h5	4
SEME6406001	R0.10	6	6	9	20	60	0~-0.030	h5	4
SEME6406001E	R0.10	6	6	9	20	60	0~-0.030	h5	4
SEME6406002	R0.20	6	6	9	20	60	0~-0.030	h5	4
SEME6406002E	R0.20	6	6	9	20	60	0~-0.030	h5	4
SEME6406003	R0.30	6	6	9	20	60	0~-0.030	h5	4
SEME6406003090	R0.30	6	6	15	30	90	0~-0.030	h5	4
SEME6406003090E	R0.30	6	6	15	30	90	0~-0.030	h5	4
SEME6406003E	R0.30	6	6	9	20	60	0~-0.030	h5	4
SEME6406005	R0.50	6	6	9	20	60	0~-0.030	h5	4
SEME6406005090	R0.50	6	6	15	30	90	0~-0.030	h5	4
SEME6406005090E	R0.50	6	6	15	30	90	0~-0.030	h5	4
SEME640600524LE	R0.5	6	6	9	24	90	0~-0.030	h5	4
SEME6406005E	R0.50	6	6	9	20	60	0~-0.030	h5	4
SEME6406010	R1.0	6	6	9	20	60	0~-0.030	h5	4
SEME6406010090	R1.0	6	6	15	30	90	0~-0.030	h5	4
SEME6406010090E	R1.0	6	6	15	30	90	0~-0.030	h5	4
SEME6406010E	R1.0	6	6	9	20	60	0~-0.030	h5	4
SEME6406015	R1.5	6	6	9	20	60	0~-0.030	h5	4
SEME6406015E	R1.5	6	6	9	20	60	0~-0.030	h5	4
SEME6406020	R2.0	6	6	9	20	60	0~-0.030	h5	4
SEME6406020E	R2.0	6	6	9	20	60	0~-0.030	h5	4
SEME6408001	R0.10	8	8	12	25	70	0~-0.030	h5	4
SEME6408001E	R0.10	8	8	12	25	70	0~-0.030	h5	4
SEME6408002	R0.20	8	8	12	25	70	0~-0.030	h5	4
SEME6408002E	R0.20	8	8	12	25	70	0~-0.030	h5	4
SEME6408003	R0.30	8	8	12	25	70	0~-0.030	h5	4
SEME6408003100	R0.30	8	8	20	35	100	0~-0.030	h5	4
SEME6408003100E	R0.30	8	8	20	35	100	0~-0.030	h5	4
SEME6408003E	R0.30	8	8	12	25	70	0~-0.030	h5	4
SEME6408005	R0.50	8	8	12	25	70	0~-0.030	h5	4
SEME6408005100	R0.50	8	8	20	35	100	0~-0.030	h5	4
SEME6408005100E	R0.50	8	8	20	35	100	0~-0.030	h5	4
SEME6408005E	R0.50	8	8	12	25	70	0~-0.030	h5	4
SEME6408010	R1.0	8	8	12	25	70	0~-0.030	h5	4
SEME6408010100	R1.0	8	8	20	35	100	0~-0.030	h5	4
SEME6408010100E	R1.0	8	8	20	35	100	0~-0.030	h5	4
SEME6408010E	R1.0	8	8	12	25	70	0~-0.030	h5	4
SEME6408015	R1.5	8	8	12	25	70	0~-0.030	h5	4
SEME6408015E	R1.5	8	8	12	25	70	0~-0.030	h5	4
SEME6408020	R2.0	8	8	12	25	70	0~-0.030	h5	4
SEME6408020E	R2.0	8	8	12	25	70	0~-0.030	h5	4
SEME6410001	R0.10	10	10	15	30	75	0~-0.030	h5	4
SEME6410001E	R0.10	10	10	15	30	75	0~-0.030	h5	4
SEME6410002	R0.20	10	10	15	30	75	0~-0.030	h5	4
SEME6410002E	R0.20	10	10	15	30	75	0~-0.030	h5	4
SEME6410003	R0.30	10	10	15	30	75	0~-0.030	h5	4
SEME6410003100	R0.30	10	10	25	40	100	0~-0.030	h5	4
SEME6410003100E	R0.30	10	10	25	40	100	0~-0.030	h5	4
SEME6410003E	R0.30	10	10	15	30	75	0~-0.030	h5	4
SEME6410005	R0.50	10	10	15	30	75	0~-0.030	h5	4
SEME6410005100	R0.50	10	10	25	40	100	0~-0.030	h5	4
SEME6410005100E	R0.50	10	10	25	40	100	0~-0.030	h5	4
SEME6410005E	R0.50	10	10	15	30	75	0~-0.030	h5	4
SEME6410010	R1.0	10	10	15	30	75	0~-0.030	h5	4
SEME6410010100	R1.0	10	10	25	40	100	0~-0.030	h5	4
SEME6410010100E	R1.0	10	10	25	40	100	0~-0.030	h5	4
SEME6410010E	R1.0	10	10	15	30	75	0~-0.030	h5	4
SEME6410015	R1.5	10	10	15	30	75	0~-0.030	h5	4
SEME6410015E	R1.5	10	10	15	30	75	0~-0.030	h5	4
SEME6410020	R2.0	10	10	15	30	75	0~-0.030	h5	4
SEME6410020E	R2.0	10	10	15	30	75	0~-0.030	h5	4
SEME6412002	R0.20	12	12	18	32	80	0~-0.030	h5	4
SEME6412002E	R0.20	12	12	18	32	80	0~-0.030	h5	4
SEME6412003	R0.30	12	12	18	32	80	0~-0.030	h5	4
SEME6412003110	R0.30	12	12	30	45	110	0~-0.030	h5	4
SEME6412003110E	R0.30	12	12	30	45	110	0~-0.030	h5	4
SEME6412003E	R0.30	12	12	18	32	80	0~-0.030	h5	4
SEME6412005	R0.50	12	12	18	32	80	0~-0.030	h5	4
SEME6412005110	R0.50	12	12	30	45	110	0~-0.030	h5	4
SEME6412005110E	R0.50	12	12	30	45	110	0~-0.030	h5	4
SEME6412005E	R0.50	12	12	18	32	80	0~-0.030	h5	4
SEME6412010	R1.0	12	12	18	32	80	0~-0.030	h5	4
SEME6412010110	R1.0	12	12	30	45	110	0~-0.030	h5	4
SEME6412010110E	R1.0	12	12	30	45	110	0~-0.030	h5	4
SEME6412010E	R1.0	12	12	18	32	80	0~-0.030	h5	4
SEME6412015	R1.5	12	12	18	32	80	0~-0.030	h5	4
SEME6412015E	R1.5	12	12	18	32	80	0~-0.030	h5	4
SEME6412020	R2.0	12	12	18	32	80	0~-0.030	h5	4
SEME6412020E	R2.0	12	12	18	32	80	0~-0.030	h5	4
SEME6416005	R0.50	16	16	20	35	100	0~-0.030	h5	4
SEME6416005150	R0.50	16	20	35	50	150	0~-0.030	h5	4
SEME641600515020	R0.50	16	20	35	50	150	0~-0.030	h5	4
SEME6416005150E	R0.50	16	20	35	50	150	0~-0.030	h5	4
SEME6416005E	R0.50	16	16	20	35	100	0~-0.030	h5	4
SEME6416010	R1.0	16	16	20	35	100	0~-0.030	h5	4
SEME6416010150	R1.0	16	20	35	50	150	0~-0.030	h5	4
SEME641601015020	R1.0	16	20	35	50	150	0~-0.030	h5	4
SEME6416010150E	R1.0	16	20	35	50	150	0~-0.030	h5	4
SEME6416010E	R1.0	16	16	20	35	100	0~-0.030	h5	4
SEME6420005	R0.50	20	20	25	40	100	0~-0.030	h5	4
SEME6420005150	R0.50	20	20	40	55	150	0~-0.030	h5	4
SEME6420005150E	R0.50	20	20	40	55	150	0~-0.030	h5	4
SEME6420005E	R0.50	20	20	25	40	100	0~-0.030	h5	4
SEME6420010	R1.0	20	20	25	40	100	0~-0.030	h5	4
SEME6420010150	R1.0	20	20	40	55	150	0~-0.030	h5	4
SEME6420010150E	R1.0	20	20	40	55	150	0~-0.030	h5	4
SEME6420010E	R1.0	20	20	25	40	100	0~-0.030	h5	4

Yêu cầu báo giá

Yêu cầu hỗ trợ báo giá nhanh, khách hàng vui lòng liên hệ Hotline 0902 59 13 12

Rất tiếc ! Sản phẩm này chưa có Video giới thiệu.

Mũi phay 4 me cổ dài (Corner Radius) SEME64

Mô tả

Yêu cầu báo giá

Sản phẩm tương tự

Mũi phay 4 me cổ dài (Corner Radius) SEME64

Mũi phay 2 me dài SEME70

Mũi phay 4 me dài SEME72

Mũi phay cầu 2 me SEMD98
