Mũi phay cầu cổ dài G8A46

Mô tả

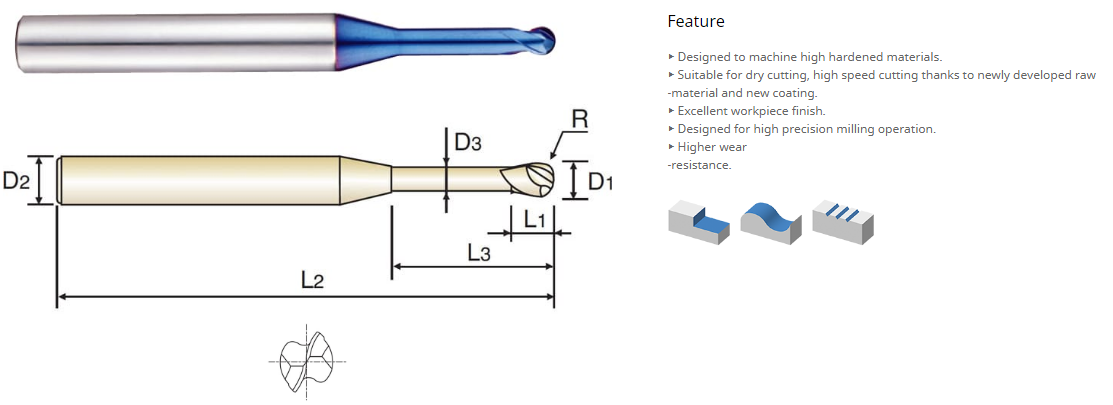

EDP No.	R	D1	D2	L1	L3	L2	Mill Dia. Tolerance	Shank Dia.Tolerance	No. of Flute	Taper Angle
G8A46002	R0.10	0.2	4	0.2	0.5	45	0~-0.012	h5	2
G8A46003	R0.15	0.3	4	0.3	1	45	0~-0.012	h5	2
G8A46004	R0.20	0.4	4	0.4	1	45	0~-0.012	h5	2
G8A46005	R0.25	0.5	4	0.4	2	45	0~-0.012	h5	2
G8A46008	R0.40	0.8	4	0.6	6	45	0~-0.012	h5	2
G8A46010	R0.50	1	4	0.8	6	45	0~-0.012	h5	2
G8A46012	R0.60	1.2	4	1	8	45	0~-0.012	h5	2
G8A46015	R0.75	1.5	4	1.2	8	45	0~-0.012	h5	2
G8A46020	R1.0	2	4	1.6	8	45	0~-0.012	h5	2
G8A46030	R1.5	3	6	2.4	16	55	0~-0.012	h5	2
G8A46040	R2.0	4	6	3.2	16	60	0~-0.012	h5	2
G8A46804	R0.25	0.5	4	0.4	2.5	45	0~-0.012	h5	2
G8A46805	R0.05	0.1	4	0.1	0.3	45	0~-0.012	h5	2
G8A46806	R0.05	0.1	4	0.1	0.5	45	0~-0.012	h5	2
G8A46901	R0.40	0.8	4	0.6	8	45	0~-0.012	h5	2
G8A46902	R0.50	1	4	0.8	8	45	0~-0.012	h5	2
G8A46903	R0.50	1	4	0.8	10	45	0~-0.012	h5	2
G8A46904	R0.50	1	4	0.8	12	45	0~-0.012	h5	2
G8A46905	R0.60	1.2	4	1	12	45	0~-0.012	h5	2
G8A46906	R0.75	1.5	4	1.2	12	45	0~-0.012	h5	2
G8A46907	R0.75	1.5	4	1.2	16	50	0~-0.012	h5	2
G8A46909	R1.0	2	4	1.6	16	50	0~-0.012	h5	2
G8A46910	R1.0	2	4	1.6	20	55	0~-0.012	h5	2
G8A46911	R1.5	3	6	2.4	20	60	0~-0.012	h5	2
G8A46912	R2.0	4	6	3.2	20	65	0~-0.012	h5	2
G8A46913	R2.0	4	6	3.2	25	70	0~-0.012	h5	2
G8A46915	R0.30	0.6	4	0.5	4	45	0~-0.012	h5	2
G8A46916	R0.30	0.6	4	0.5	6	45	0~-0.012	h5	2
G8A46917	R0.30	0.6	4	0.5	8	45	0~-0.012	h5	2
G8A46918	R0.40	0.8	4	0.6	2	45	0~-0.012	h5	2
G8A46919	R0.40	0.8	4	0.6	4	45	0~-0.012	h5	2
G8A46920	R0.50	1	4	0.8	3	45	0~-0.012	h5	2
G8A46921	R0.50	1	4	0.8	4	45	0~-0.012	h5	2
G8A46923	R0.50	1	4	0.8	5	45	0~-0.012	h5	2
G8A46924	R0.50	1	4	0.8	7	45	0~-0.012	h5	2
G8A46925	R0.50	1	4	0.8	9	45	0~-0.012	h5	2
G8A46926	R0.50	1	4	0.8	14	50	0~-0.012	h5	2
G8A46927	R0.50	1	4	0.8	16	50	0~-0.012	h5	2
G8A46930	R0.75	1.5	4	1.2	6	45	0~-0.012	h5	2
G8A46931	R0.75	1.5	4	1.2	10	45	0~-0.012	h5	2
G8A46932	R0.75	1.5	4	1.2	20	55	0~-0.012	h5	2
G8A46939	R1.0	2	4	1.6	4	45	0~-0.012	h5	2
G8A46940	R1.0	2	4	1.6	6	45	0~-0.012	h5	2
G8A46941	R1.0	2	4	1.6	10	45	0~-0.012	h5	2
G8A46942	R1.0	2	4	1.6	12	50	0~-0.012	h5	2
G8A46943	R1.0	2	4	1.6	14	50	0~-0.012	h5	2
G8A46944	R1.0	2	4	1.6	22	60	0~-0.012	h5	2
G8A46945	R1.0	2	4	1.6	25	60	0~-0.012	h5	2
G8A46948	R1.5	3	6	2.4	12	50	0~-0.012	h5	2
G8A46950	R2.0	4	6	3.2	12	60	0~-0.012	h5	2
G8A46957	R0.30	0.6	4	0.5	2	45	0~-0.012	h5	2
G8A46958	R0.10	0.2	4	0.2	1.5	45	0~-0.012	h5	2
G8A46959	R0.15	0.3	4	0.3	2	45	0~-0.012	h5	2
G8A46960	R0.20	0.4	4	0.4	2	45	0~-0.012	h5	2
G8A46961	R0.20	0.4	4	0.4	3	45	0~-0.012	h5	2
G8A46962	R0.25	0.5	4	0.4	4	45	0~-0.012	h5	2
G8A46963	R0.25	0.5	4	0.4	6	45	0~-0.012	h5	2
G8A46964	R0.25	0.5	4	0.4	8	45	0~-0.012	h5	2
G8A46965	R0.40	0.8	4	0.6	10	45	0~-0.012	h5	2
G8A46966	R0.50	1	4	0.8	20	55	0~-0.012	h5	2
G8A46967	R1.0	2	4	1.6	30	70	0~-0.012	h5	2
G8A46968	R1.5	3	6	2.4	25	65	0~-0.012	h5	2
G8A46969	R1.5	3	6	2.4	30	70	0~-0.012	h5	2
G8A46970	R1.5	3	6	2.4	35	80	0~-0.012	h5	2
G8A46971	R2.0	4	6	3.2	30	70	0~-0.012	h5	2
G8A46972	R2.0	4	6	3.2	35	80	0~-0.012	h5	2
G8A46973	R2.0	4	6	3.2	40	90	0~-0.012	h5	2
G8A46974	R2.0	4	6	3.2	45	90	0~-0.012	h5	2
G8A46975	R2.0	4	6	3.2	50	100	0~-0.012	h5	2
G8A46977	R0.10	0.2	4	0.2	1	45	0~-0.012	h5	2
G8A46981	R0.20	0.4	4	0.4	4	45	0~-0.012	h5	2
G8A46982	R0.60	1.2	4	1	6	45	0~-0.012	h5	2
G8A46983	R0.60	1.2	4	1	10	45	0~-0.012	h5	2
G8A46984	R1.5	3	6	2.4	14	55	0~-0.012	h5	2
G8A46985	R1.5	3	6	2.4	18	60	0~-0.012	h5	2
G8A46986	R0.15	0.3	4	0.3	3	45	0~-0.012	h5	2
G8A46987	R0.20	0.4	4	0.4	5	45	0~-0.012	h5	2
G8A46988	R0.30	0.6	4	0.5	3	45	0~-0.012	h5	2
G8A46989	R0.30	0.6	4	0.5	5	45	0~-0.012	h5	2
G8A46990	R0.30	0.6	4	0.5	10	45	0~-0.012	h5	2
G8A46992	R0.75	1.5	4	1.2	14	50	0~-0.012	h5	2
G8A46993	R1.0	2	4	1.6	18	55	0~-0.012	h5	2

Yêu cầu báo giá

Yêu cầu hỗ trợ báo giá nhanh, khách hàng vui lòng liên hệ Hotline 0902 59 13 12
