Mô tả

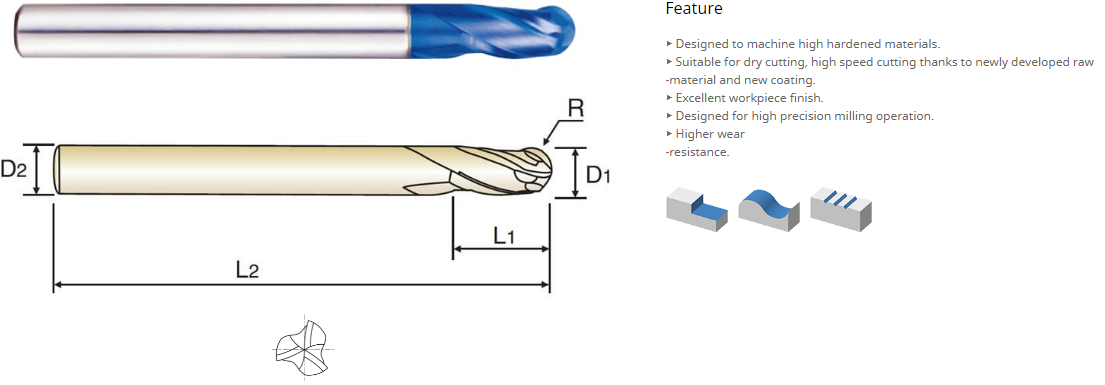

EDP No. | R | D1 | D2 | L1 | L3 | L2 | Mill Dia. Tolerance | Shank Dia.Tolerance | No. of Flute | Taper Angle |
| G8A59030 | R1.5 | 3 | 6 | 8 | 60 | 0~-0.012 | h5 | 3 | ||
| G8A59040 | R2.0 | 4 | 6 | 8 | 70 | 0~-0.012 | h5 | 3 | ||
| G8A59050 | R2.5 | 5 | 6 | 10 | 80 | 0~-0.012 | h5 | 3 | ||
| G8A59060 | R3.0 | 6 | 6 | 12 | 90 | 0~-0.012 | h5 | 3 | ||
| G8A59080 | R4.0 | 8 | 8 | 14 | 100 | 0~-0.015 | h5 | 3 | ||
| G8A59100 | R5.0 | 10 | 10 | 18 | 100 | 0~-0.015 | h5 | 3 | ||
| G8A59120 | R6.0 | 12 | 12 | 22 | 110 | 0~-0.015 | h5 | 3 | ||
| G8A59160 | R8.0 | 16 | 16 | 30 | 140 | 0~-0.015 | h5 | 3 | ||
| G8A59200 | R10.0 | 20 | 20 | 38 | 160 | 0~-0.015 | h5 | 3 |
